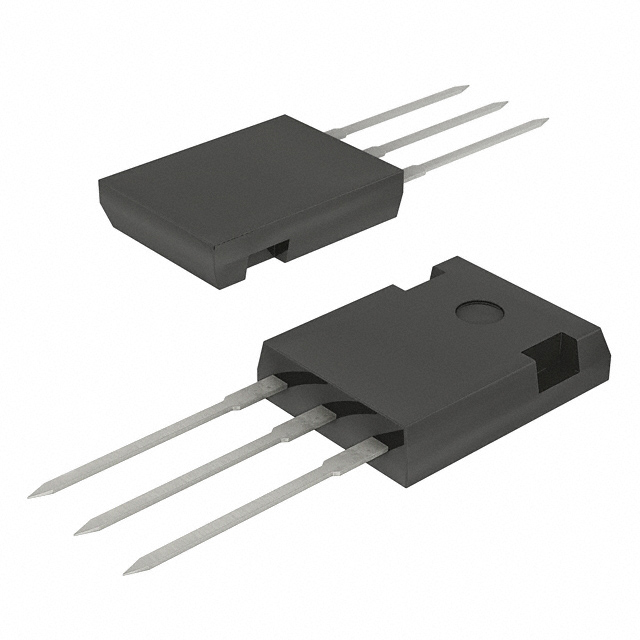

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRFP054 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Voltage Rating (DC)	60.0 V
Current Rating	70.0 A
Drain to Source Resistance (on) (Rds)	14.0 mΩ
Polarity	N-Channel
Power Dissipation	230 W
Breakdown Voltage (Drain to Source)	60.0V (min)
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	70.0 A
Rise Time	160 ns
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
