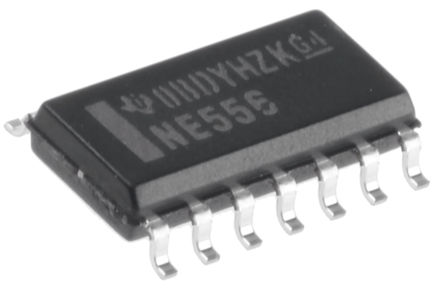

Image is for your reference only,please check specifications for details

NE556D - TI
Manufacturer:
TI
ManyChip's Part#:
MC2888392
Category:
Clock Chip, Timing IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
Precision Timer IC, Timing Microseconds to Hours, TTL, Astable, Monostable, 4.5V to 16V, SOIC-14
Stock Locations:
Availability:
1,561 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NE556D is a dual Precision Timer can be operated in the astable or the monostable mode with external resistor-capacitor (RC) timing control. The basic timing provided by the RC time constant can be controlled actively by modulating the bias of the control-voltage input. The threshold (THRES) and trigger (TRIG) levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by using the control voltage (CONT) terminal. When the trigger input falls below trigger level, the flip-flop is set and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. The reset (RESET) input can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset and the output goes low. When the output is low, a low-impedance path is provided between the discharge (DISCH) terminal and ground (GND).
Astable or monostable operation
TTL-compatible output can sink or source up to 150mA
Active pull-up or pull-down
Green product and no Sb/Br

Show

NE556D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Frequency	500 kHz
Supply Voltage (DC)	4.50V (min)
Current Rating	20 A
Output Current	200 mA
Supply Current	20 mA
Number of Positions	14 Position
Quiescent Current	30 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	8.65 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Weight	0.0020701957136 kg
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/01/15
ECCN Code	EAR99
