Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

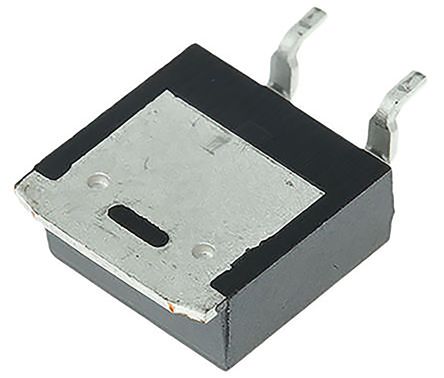

Case/Package | TO-252-3 |
Power Rating | 42 W |
Number of Positions | 3 Position |
Drain to Source Resistance (on) (Rds) | 4.4 Ω |
Polarity | N-Channel |
Power Dissipation | 2.5 W |
Threshold Voltage | 4 V |
Drain to Source Voltage (Vds) | 600 V |
Continuous Drain Current (Ids) | 2.00 A |
Rise Time | 23 ns |
Input Capacitance (Ciss) | 350pF @25V(Vds) |
Input Power (Max) | 2.5 W |
Fall Time | 25 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 42 W |
Show | |
Size-Length | 6.73 mm |
Size-Width | 6.22 mm |
Size-Height | 2.38 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
