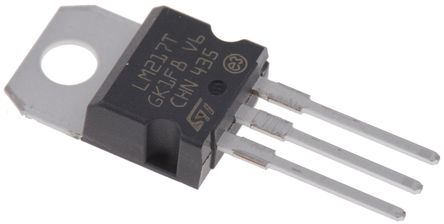

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM217T is a Monolithic Integrated Circuit intended for use as positive adjustable Voltage Regulator. It is designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V range. The nominal output voltage is selected by means of a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
1.2 to 37V Output voltage range
0.1% Line and load regulation
Floating operation for high voltages

Show

LM217T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Supply Voltage (DC)	40.0V (max)
Operating Voltage	3V ~ 40V
Number of Outputs	1 Output
Input Voltage (DC)	40.0V (max)
Output Voltage	1.2V ~ 37V
Output Current	1.5 A
Number of Positions	3 Position
Input Voltage (Max)	40 V
Output Voltage (Max)	37 V
Output Voltage (Min)	1.2 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-25 ℃
Input Voltage	40 V
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-25℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
