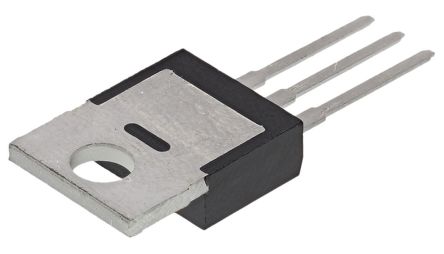

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Single N-Channel 60 V 0.028 Ohms Flange Mount Power Mosfet - TO-220-3
IRFZ44PBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | 60.0 V |
| Current Rating | 50.0 A |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.028 Ω |
| Polarity | N-Channel |
| Power Dissipation | 150 W |
| Threshold Voltage | 4 V |
| Input Capacitance | 1.90 nF |
| Gate Charge | 67.0 nC |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Gate to Source) | ±20.0 V |
| Continuous Drain Current (Ids) | 50.0 A |
| Rise Time | 110 ns |
| Input Capacitance (Ciss) | 1900pF @25V(Vds) |
| Input Power (Max) | 150 W |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 150000 mW |
| Show | |
| Size-Length | 10.41 mm |
| Size-Width | 4.7 mm |
| Size-Height | 9.01 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| Minimum Packing Quantity | 50 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
