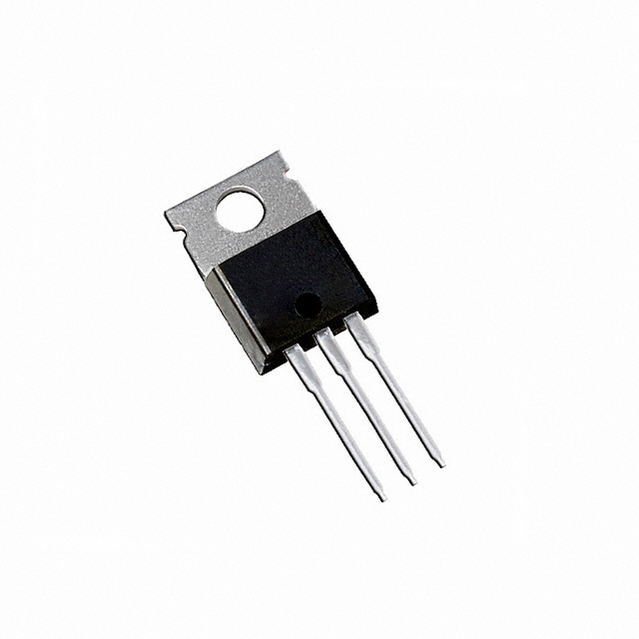

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRFZ48 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Drain to Source Resistance (on) (Rds)	18 mΩ
Polarity	N-CH
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	50A
Rise Time	250 ns
Input Capacitance (Ciss)	2400pF @25V(Vds)
Fall Time	250 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	190000 mW
	Show
Minimum Packing Quantity	50
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
