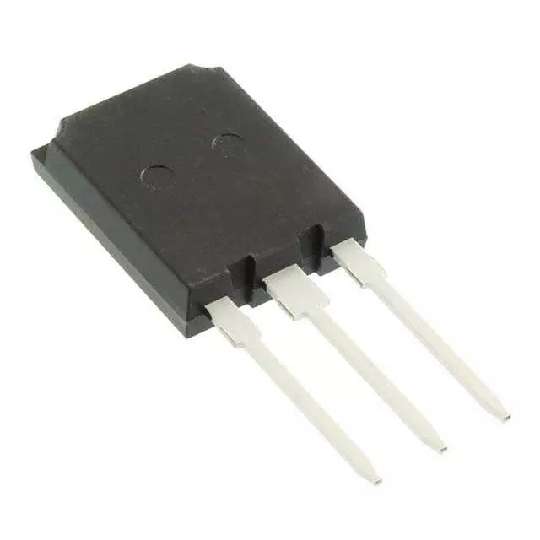

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Introduction
The reliability report is a summary of the test data collated since the implementation of the reliability programme. This report will be periodically updated typically on a quarterly basis. Future publications of this report will also include as appropriate additional information to assist the user in the interpretation of the data provided. The programme covers only IGBT / CoPack manufactured products at IRGB, Holland Road, Oxted. The reliability data provided in this report are for the package types TO247 and TO220.
Further information regarding reliability data is available in the IR data book IGBT-3, pages E-65-E-72. This also, is available from the Oxted office.

Show

IRG4PC30U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	23.0 A
Power Dissipation	100 W
Part Family	IRG4PC30U
Rise Time	9.60 ns
Breakdown Voltage (Collector to Emitter)	600 V
Input Power (Max)	100 W
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
