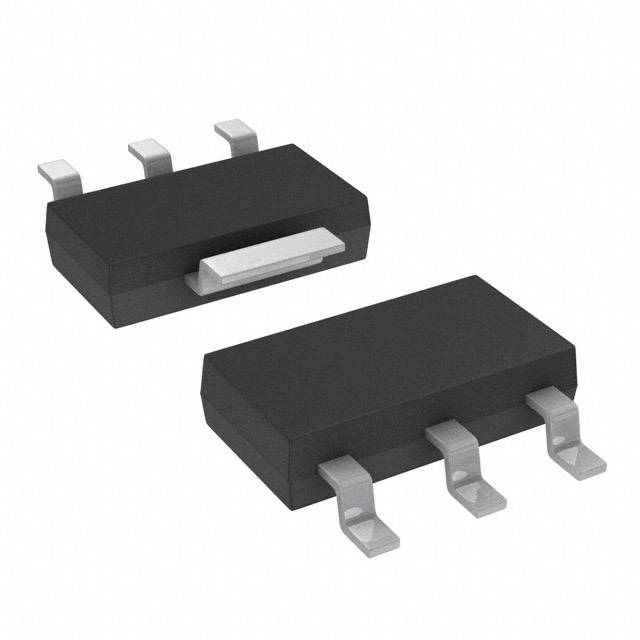

Image is for your reference only,please check specifications for details

IRLM110ATF - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC172965476
Category:
MOSFET, MOSFET Transistor
Package:
SOT-223-4
Datasheet:
Datasheet 3D Model
Description:
N CH MOSFET, 100V, 1.5A, SOT-223; Transi; N CH MOSFET, 100V, 1.5A, SOT-223; Transistor Polarity: N Channel; Continuou...
Stock Locations:
Availability:
247 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IRLM110ATF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-223-4
Voltage Rating (DC)	100 V
Current Rating	1.50 A
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	440 mΩ
Polarity	N-Channel
Power Dissipation	2.2 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	100 V
Breakdown Voltage (Drain to Source)	100 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	1.50 A
Rise Time	10 ns
Input Capacitance (Ciss)	235pF @25V(Vds)
Input Power (Max)	2.2 W
Fall Time	8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.2W (Tc)
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.8 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
