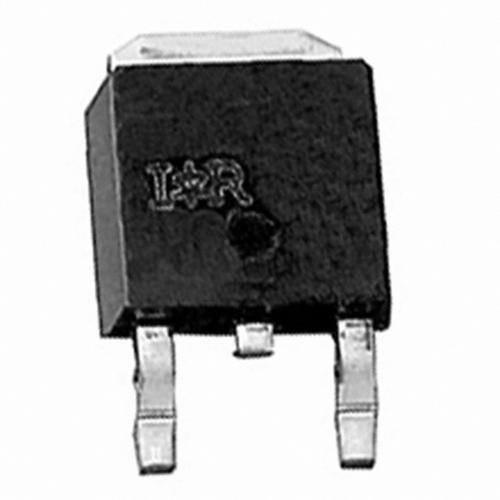

Image is for your reference only,please check specifications for details

IRLR3103 - International Rectifier
Manufacturer:
International Rectifier
ManyChip's Part#:
MC497795796
Category:
MOSFET, MOSFET Transistor
Package:
TO-252
Datasheet:
Datasheet 3D Model
Description:
Single N-Channel 30V 107W 50NC Hexfet Power Mosfet Surface Mount - TO-252AA
Stock Locations:
Availability:
283 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRLR3103 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252
Voltage Rating (DC)	30.0 V
Current Rating	52.0 A
Drain to Source Resistance (on) (Rds)	19.0 mΩ (max)
Part Family	IRLR3103
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30.0V (min)
Continuous Drain Current (Ids)	55.0 A
Rise Time	210 ns
Input Capacitance (Ciss)	1600pF @25V(Vds)
Input Power (Max)	107 W
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
