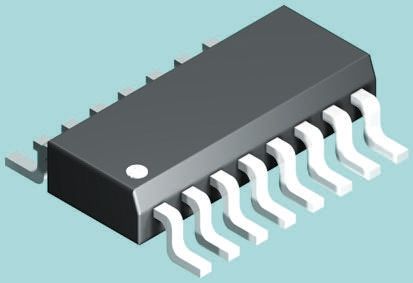

Image is for your reference only,please check specifications for details
- SFH6916 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC3938065
-
Category:Optocoupler, Optoisolator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler, Transistor Output, 4Channel, SOP, 16Pins, 50mA, 3.75kV, 50%
-
Stock Locations:
-
Availability:1,248 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 21.7
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SFH6916 is a 4-channel Phototransistor Output Optocoupler has a GaAs infrared emitter, which is optically coupled to a silicon planar phototransistor detector. It features a high current transfer ratio, low coupling capacitance and high isolation voltage. The coupling device is designed for signal transmission between two electrically separated circuits.
SFH6916 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOP-16 |
| Voltage Rating (DC) | 1.15 V |
| Rise/Fall Time | 4μs, 3μs |
| Output Voltage | 70.0 V |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Forward Voltage | 1.15 V |
| Input Current | 5.00 mA |
| Power Dissipation | 0.15 W |
| Rise Time | 4 µs |
| Isolation Voltage | 3.75 kV |
| Forward Current | 50 mA |
| Output Voltage (Max) | 70 V |
| Input Current (Min) | 50 mA |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.4 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 3 µs |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 150 mW |
| Show | |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
