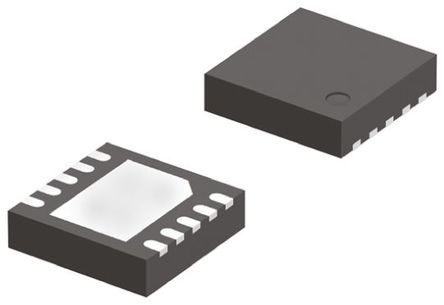

Image is for your reference only,please check specifications for details
- ISL8012IRZ - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC75731190
-
Category:DC to DC Converter
-
Package:DFN-10
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.7V to 5.5V Step Down Single-Out 0.8V to 5.5V 2A 10Pin DFN EP
-
Stock Locations:
-
Availability:283 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.41
Updated at 04/12/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2A Low Quiescent Current 1MHz High Efficiency Synchronous Buck Regulator
- The ISL8012 is a high efficiency, monolithic, synchronous step-down DC/DC converter that can deliver up to 2A continuous output current from a 2.7V to 5.5V input supply. It uses a current control architecture to deliver very low duty cycle operation at high frequency with fast transient
- response and excellent loop stability.
- The ISL8012 integrates a pair of low ON-resistance P-Channel and N-Channel internal MOSFETs to maximize efficiency and minimize external component count. The 100% duty-cycle operation allows less than 240mV dropout voltage at 2A output current. High 1MHz pulse-width modulation (PWM) switching frequency allows the use of small external components.
- Features
- • High Efficiency Synchronous Buck Regulator with up to 95% Efficiency
- • Power-Good (PG) Output with a 1ms Delay
- • 2.7V to 5.5V Supply Voltage
- • 3% Output Accuracy Over-Temperature/Load/Line
- • 2A Guaranteed Output Current
- • Start-up with Pre-Biased Output
- • Internal Soft-Start - 1ms
- • Soft-Stop Output Discharge During Disabled
- • 40µA Quiescent Supply Current in PFM Mode
- • Selectable Forced PWM Mode and PFM Mode
- • Less than 1µA Logic Controlled Shutdown Current
- • 100% Maximum Duty Cycle
- • Internal Current Mode Compensation
- • Peak Current Limiting and Hiccup Mode Short Circuit Protection
- • Over-Temperature Protection
- • Small 10 Ld 3mmx3mm DFN
- • Pb-Free (RoHS Compliant)
- Applications
- • DC/DC POL Modules
- • µC/µP, FPGA and DSP Power
- • Plug-in DC/DC Modules for Routers and Switchers
- • Portable Instruments
- • Test and Measurement Systems
- • Li-ion Battery Powered Devices
- • Small Form Factor (SFP) Modules
- • Bar Code Readers
ISL8012IRZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | DFN-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 5.5V |
| Output Current | 2 A |
| Number of Positions | 10 Position |
| Switching Frequency | 1 MHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 800 mV |
| Output Current (Max) | 2 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7 V |
| Input Voltage | 2.7V ~ 5.5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
