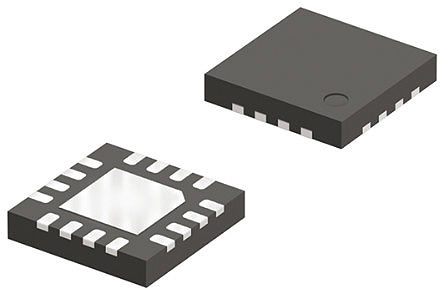

Image is for your reference only,please check specifications for details

TS3A44159RGTR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1485471
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
VQFN-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS3A44159RGTR Analog Switch, Quad Channel, SPDT, 4Channels, 0.5Ω, 1.65V to 4.3V, QFN, 16Pins
Stock Locations:
Availability:
2,354 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.55

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3A44159 is a bidirectional 4-channel single-pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.65 V to 4.3 V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. It offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature that prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications

Show

TS3A44159RGTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	VQFN-16
Number of Outputs	8 Output
Supply Current	15 nA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Voltage Nodes	1.80 V, 2.50 V, 3.00 V, 3.30 V
Bandwidth	35.0 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	35 MHz
Supply Voltage	1.65V ~ 4.3V
Supply Voltage (Max)	4.3 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	3.15 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
