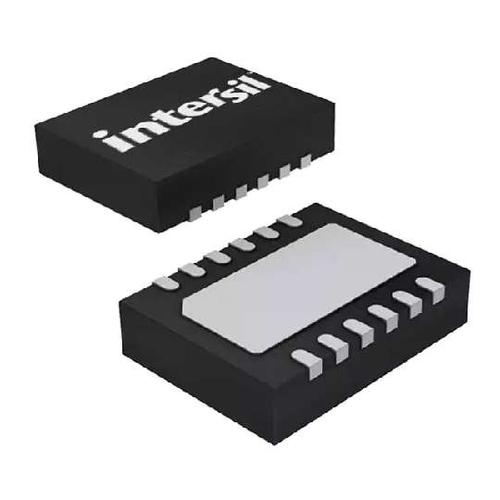

ISL8022IRZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC91629553
Category:
DC to DC Converter
Package:
DFN-12
Datasheet:
Datasheet 3D Model
Description:
Dual 2A/1.7A Low Quiescent Current 2.25MHz High Efficiency Synchronous Buck Regulator
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.1

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISL8022IRZ is a dual synchronous Step-down DC/DC Regulator can deliver up to 2/1.7A continuous output current per channel. The channels are 180° out-of-phase for input RMS current and EMI reduction. The supply voltage range of 2.8 to 5.5V allows for the use of a single Li+ cell, three NiMH cells or a regulated 5V input. The current mode control architecture enables very low duty cycle operation at high frequency with fast transient response and excellent loop stability. The ISL8022 operates at 2.25MHz switching frequency allowing for the use of small, low cost inductors and capacitors. Each channel is optimized for generating an output voltage as low as 0.6V. The ISL8022 has a user configurable mode of operation-forced PWM mode and PFM/PWM mode. The forced PWM mode operation reduces noise and RF interference while the PFM mode operation provides high efficiency by reducing switching losses at light loads.
Start-up with pre-biased output
Selectable forced PWM mode and PFM mode
Negative current detection and protection
Internal current mode compensation
Peak current limiting, hiccup mode short circuit protection and over-temperature protection
180° out-of-phase
100% Maximum duty cycle for lowest dropout

Show

ISL8022IRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	DFN-12
Number of Outputs	2 Output
Output Voltage	0.6V ~ 5.5V
Output Current	2A, 1.7A
Switching Frequency	2.25 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.8 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	0.6 V
Output Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Width	3 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
