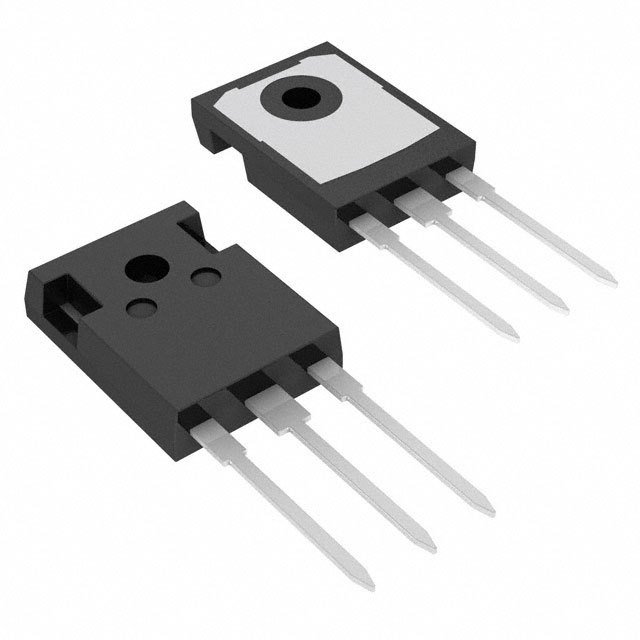

Image is for your reference only,please check specifications for details

ISL9K3060G3 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC7413404
Category:
Diode Array, TVS Diode Array
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
ISL9 Series Dual 600V 30A 35ns Through Hole Stealth Diode - TO-247-3
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

ISL9K3060G3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	30.0 A
Capacitance	120 pF
Load Current	30 A
Forward Voltage	2.4V @30A
Reverse recovery time	45 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	325 A
Maximum Forward Voltage (Max)	2.4 V
Operating Temperature (Max)	175 ℃
	Show
Size-Width	4.82 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
