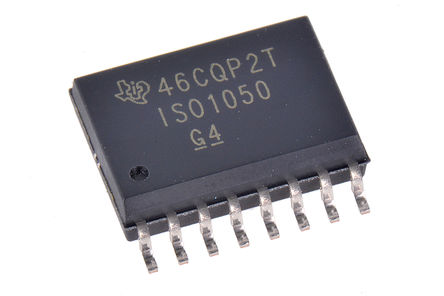

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ISO1050DW is a galvanically isolated CAN Transceiver that meets the specifications of the ISO11898-2 standard. The device has the logic input and output buffers separated by a silicon oxide (SiO2) insulation barrier that provides galvanic isolation of up to 5000VRMS for ISO1050DW. Used in conjunction with isolated power supplies, the device prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. As a CAN transceiver, the device provides differential transmit capability to the bus and differential receive capability to a CAN controller at signalling rates up to 1 megabit per second (Mbps). The device is designed for operation in especially harsh environments and it features cross-wire, overvoltage and loss of ground protection from -27 to 40V and over-temperature shutdown, as well as -12 to 12V common-mode range.
- Fail-safe outputs
- 150ns Typical low loop delay
- 50kV/µs Typical transient immunity
- Bus-fault protection
- Driver (TXD) dominant time-out function
- VDE approval per DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 and DIN EN 61010-1
- UL 1577 approved
- CSA Approved for IEC 60950-1, IEC 61010-1, IEC 60601-1 3rd Ed (medical)
- TUV 5kVRMS Reinforced insulation approval for EN/UL/CSA 60950-1 (ISO1050DW-only)
- CQC Reinforced insulation per GB4843.1-2011 (ISO1050DW-Only)
- Typical 25-year life at rated working voltage
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
ISO1050DW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Positions | 16 Position |
| Data Rate | 1.00 Mbps |
| Thermal Shutdown | Yes |
| Drivers Per Package | 1 |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -55℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
| ECCN Code | EAR99 |
