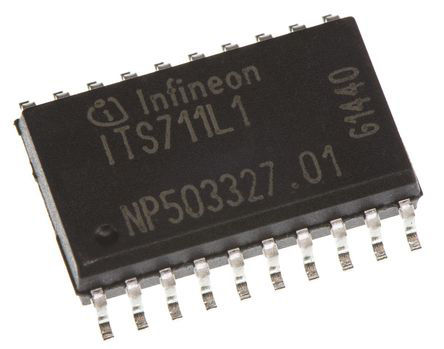

Image is for your reference only,please check specifications for details

ITS711L1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC9937008
Category:
FET Driver
Package:
PG-DSO-20
Datasheet:
Datasheet 3D Model
Description:
Infineon ITS711L1, Quad Intelligent Power Switch, High Side, 4.4A, 5 → 34V, 20Pin, SOIC
Stock Locations:
Availability:
1,100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic
feedback, monolithically integrated in Smart SIPMOStechnology. Providing embedded protective functions.
Features
•Overload protection
•Current limitation
•Short-circuit protection
•Thermal shutdown
•Overvoltage protection (including load dump)
•Fast demagnetization of inductive loads
•Reverse battery protection1)
•Undervoltage and overvoltage shutdown
with auto-restart and hysteresis
•Open drain diagnostic output
•Open load detection in ON-state
•CMOS compatible input
•Loss of ground and loss of Vbbprotection
• Electrostatic discharge (ESD) protection
Application
• µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads in industrial applications
•All types of resistive, inductive and capacitive loads
•Replaces electromechanical relays and discrete circuits

Show

ITS711L1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PG-DSO-20
Number of Outputs	4 Output
Input Voltage (DC)	34.0 V
Output Voltage	2.4 V
Output Current	1.7 A
Supply Current	8 mA
Number of Channels	4 Channel
Number of Positions	20 Position
Drain to Source Resistance (on) (Rds)	0.05 Ω
Power Dissipation	3.6 W
Input Voltage (Max)	16 V
Output Current (Max)	1.7 A
Output Current (Min)	4.1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	3600 mW
Operating Voltage (Max)	34 V
Supply Voltage	5.34 VDC
Supply Voltage (Min)	5 V
Input Voltage	34 V
	Show
Size-Length	12.8 mm
Size-Width	7.6 mm
Size-Height	2.45 mm
Operating Temperature	-30℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
