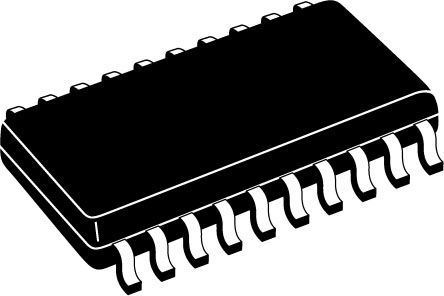

ITS716G - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC9119073
Category:
Power Management IC
Package:
PG-DSO-20
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 4 Driver, 0.7A, PDSO20, GREEN, PLASTIC, SOP-20
Stock Locations:
Availability:
59 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.41

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ITS716G is a four channel high side Power Switch N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology. Providing embedded protection and diagnostic functions.
Very low standby current
CMOS compatible input
Improved electromagnetic compatibility (EMC)
Fast demagnetization of inductive loads
Stable behaviour at undervoltage
Wide operating voltage range
Logic ground independent from load ground
Short-circuit protection
Overload protection
Current limitation
Thermal shutdown
Overvoltage protection (including load dump) with external resistor
Reverse battery protection with external resistor
Loss of ground and loss of Vbb protection
Electrostatic discharge protection (ESD)
Diagnostic feedback with open drain output
Open load detection in OFF-state
Feedback of thermal shutdown in ON-state

Show

ITS716G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PG-DSO-20
Number of Outputs	4 Output
Input Voltage (DC)	40.0 V
Output Current	2.3 A
Supply Current	1.9 mA
Number of Channels	4 Channel
Number of Positions	20 Position
Drain to Source Resistance (on) (Rds)	0.035 Ω
Power Dissipation	3.6 W
Input Voltage (Max)	16 V
Output Current (Max)	2.3 A
Output Current (Min)	5.3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	3600 mW
Operating Voltage (Max)	43 V
Supply Voltage	5.5.40 VDC
Supply Voltage (Max)	40 V
Supply Voltage (Min)	5.5 V
Input Voltage	40 V
	Show
Size-Length	12.8 mm
Size-Width	7.6 mm
Size-Height	2.45 mm
Operating Temperature	-30℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
