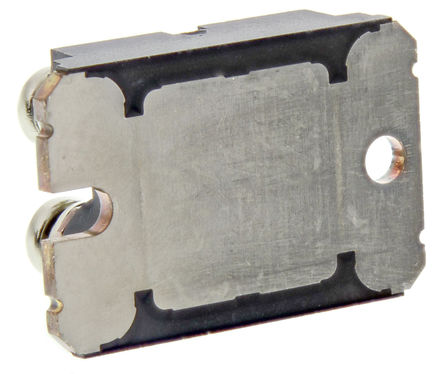

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IXFN140N30P is a Polar™ N-channel enhancement-mode Power MOSFET with fast intrinsic diode (HiPerFET™). It features reduced static drain-to-source ON-resistance and high power density. It is suitable for DC-to-DC converters, battery chargers, DC choppers and high speed power switching applications.
Avalanche rating
Low Qg
Low package inductance
Easy to mount
Space saving

Show

IXFN140N30P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Number of Pins	4 Pin
Case/Package	SOT-227-4
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	0.024 Ω
Polarity	N-Channel
Power Dissipation	700 W
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	300 V
Continuous Drain Current (Ids)	140 A
Rise Time	30 ns
Reverse recovery time	200 ns
Input Capacitance (Ciss)	14800pF @25V(Vds)
Fall Time	20 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	700W (Tc)
	Show
Size-Length	38.2 mm
Size-Width	25.07 mm
Size-Height	9.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
