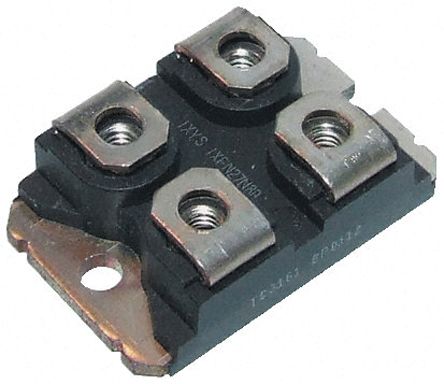

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXFN62N80Q3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	4 Pin
Case/Package	SOT-227-4
Number of Channels	1 Channel
Polarity	N-CH
Power Dissipation	960 W
Drain to Source Voltage (Vds)	800 V
Continuous Drain Current (Ids)	49A
Rise Time	20 ns
Input Capacitance (Ciss)	13600pF @25V(Vds)
Fall Time	11 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	960W (Tc)
	Show
Size-Length	38.23 mm
Size-Width	25.07 mm
Size-Height	9.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
