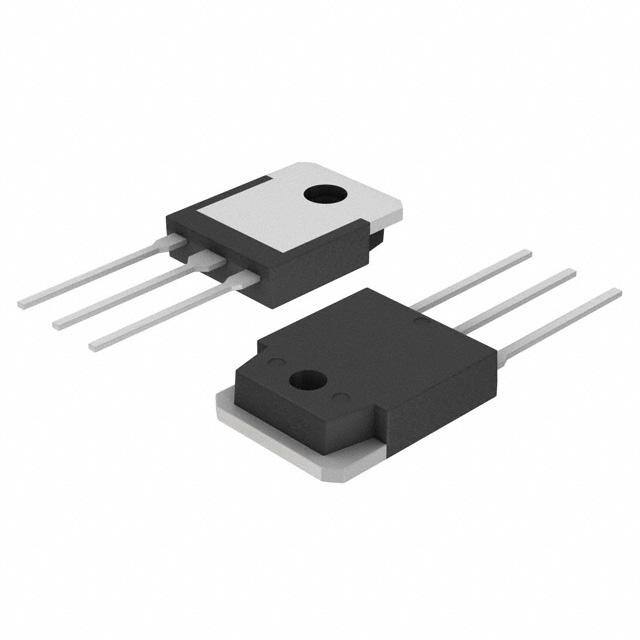

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 500V 52A (Tc) 960W (Tc) Through Hole TO-3P
IXTQ480P2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-3-3 |
| Number of Channels | 1 Channel |
| Polarity | N-CH |
| Power Dissipation | 960 W |
| Drain to Source Voltage (Vds) | 500 V |
| Continuous Drain Current (Ids) | 52A |
| Rise Time | 11 ns |
| Input Capacitance (Ciss) | 6800pF @25V(Vds) |
| Fall Time | 8 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 960W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
