AC3FDZ - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC12351903
Category:
Audio Connector
Package:
Metal
Datasheet:
Datasheet 3D Model
Description:

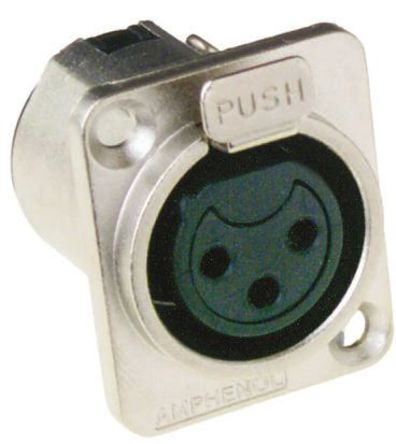

Conn XLR Connector F 3POS Solder ST Panel Mount 3 Terminal 1Port Bag
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AC3FDZ is a 3-pole female XLR Audio Connector with tin-plated stamped contacts, nickel-plated zinc die-cast shell and D-size housing. The metal chassis mount Z series connector is designed for the audio user where durability, reliability and strength across a wide range of applications are important.
Solder bucket connections
14AWG Maximum wire gauge
1400VAC RMS Test voltage
* >=1000MR Insulation resistance
IP40 Protection rating
1000 Mating cycles
UL94V-0 Flammability rating

Show

AC3FDZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel, Solder
Number of Pins	3 Pin
Case/Package	Metal
Number of Contacts	3 Contact
Gender	Female
Contact Plating	Tin
Voltage Rating (DC)	133 V
Voltage Rating (AC)	50.0 V
Current Rating	15 A
Insulation Resistance	1000 MΩ
Orientation	Straight
Flammability Rating	UL 94 V-0
Number of Positions	3 Position
Contact Resistance	3 mΩ
Number of Mating Cycles	1000 Cycle
Current Rating (Max)	15 A
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating (Max)	133 VAC
Voltage Rating	133 V
Maximum Contact Resistance (Max)	3 mΩ
	Show
Size-Length	26 mm
Size-Width	33.1 mm
Size-Height	31 mm
Color	Black
Contact Material	Phosphor Bronze
Operating Temperature	-25℃ ~ 75℃
Housing Material	Zinc Die-Cast
Product Lifecycle Status	Active
Packaging	Bag
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
