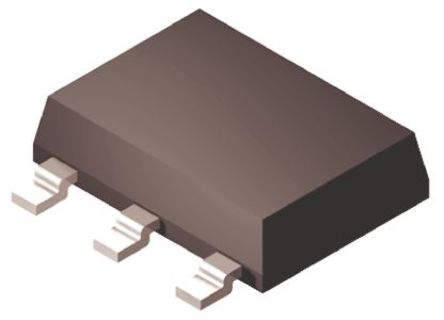

Image is for your reference only,please check specifications for details

BSP52 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC8392263
Category:
BJT Transistor, BJT
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR BSP52 Bipolar (BJT) Single Transistor, Darlington, NPN, 80V, 200MHz, 1W, 800mA, 2000 hFE
Stock Locations:
Availability:
3,302 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.42

Updated at 22/03/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

• This device is designed for applications requiring extremly high current gain at collector currents to 500mA.

Show

BSP52 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Voltage Rating (DC)	10.0 V
Current Rating	1.00 A
Power Rating	1 W
Number of Positions	4 Position
Polarity	NPN
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	80 V
hFE Min	2000 @500mA, 10V
Input Power (Max)	1 W
DC Current Gain (hFE)	2000
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1 W
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
