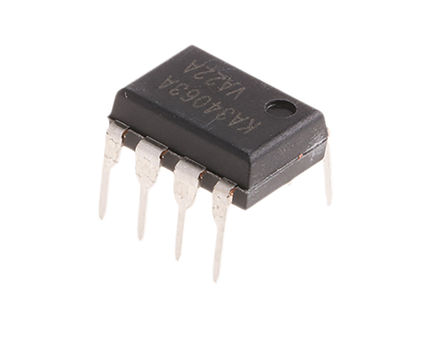

KA34063A - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC14233336
Category:
DC to DC Converter
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR KA34063A DC-DC Switching Buck, Boost, Inverting Regulator, Adjustable, 3V-40V in, 1.5A out, 100kHz, DIP-8
Stock Locations:
Availability:
3,159 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KA34063A is a monolithic regulator Sub System intended for use as DC to DC converter. This device contains a temperature compensated bandgap reference, a duty-cycle control oscillator, driver and high current output switch. It can be used for step down, step-up or inverting switching regulators as well as for series pass regulators.
Short-circuit current limiting
Low standby current
Output voltage adjustable
Step-up, step-down or inverting switching regulators

Show

KA34063A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	100 kHz
Operating Voltage	3V ~ 40V
Number of Outputs	1 Output
Input Voltage (DC)	5.00 V
Output Voltage	40.0 V
Output Current	1.5 A
Number of Channels	1 Channel
Number of Positions	8 Position
Switching Frequency	100Hz ~ 100kHz
Input Voltage (Max)	40 V
Input Voltage (Min)	3 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	3V ~ 40V
	Show
Size-Length	10.15 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
