KA7552A - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC16576840
Category:
Power Management IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:

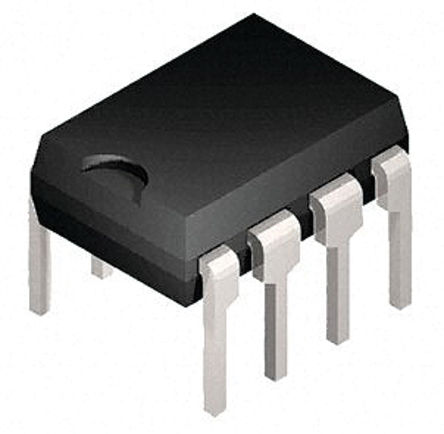

FAIRCHILD SEMICONDUCTOR KA7552A PWM Controller, 30V-10V supply, 135kHz, 16.5V/100mA out, DIP-8
Stock Locations:
Availability:
1,819 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.74

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KA7552A is a PWM Controller programmable frequency up to 600kHz. The KA7552A is switching power control IC for wide operating frequency range. The internal circuits include pulse by pulse current limiting, protection, on/off control by external trigger, low standby current, soft start and high current totem pole output for driving a POWER MOSFET. When duty is maximum, the input threshold voltage of pin2 and pin8 are not same in KA7552A.
Built-in drive circuits for direct connection POWER MOSFET (lO = ±1.5A)
Wide operating frequency range (5 to 600kHz)
Pulse by pulse over-current limiting
Overload protection
On/off control by external trigger
Internal UVLO
Low standby current (typical 90uA)
Soft start circuit

Show

KA7552A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	135 kHz
Supply Voltage (DC)	10.0V (min)
Operating Voltage	8.7V ~ 30V
Power Rating	800 mW
Number of Outputs	1 Output
Output Voltage	16.5 V
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	800 mW
Switching Frequency	135 kHz
Duty Cycle	74 %
Output Current (Max)	1.5 A
Maximum Duty Cycle	70 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	800 mW
Supply Voltage	8.7V ~ 30V
Supply Voltage (Max)	30 V
Supply Voltage (Min)	10 V
Input Voltage	2.6 V
	Show
Size-Length	9.6 mm
Size-Width	6.4 mm
Size-Height	3.4 mm
Operating Temperature	-25℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
