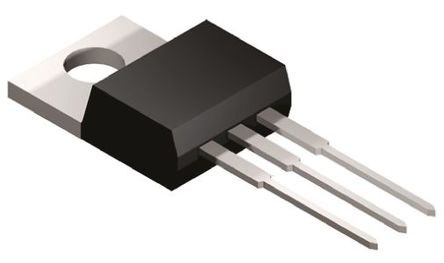

Image is for your reference only,please check specifications for details

KA7812ETU - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC11987011
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR KA7812ETU Linear Voltage Regulator, 7812, Fixed, 14.5V To 27V In, 12V And 1A Out, TO-220AB-3
Stock Locations:
Availability:
796 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.67

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KA7812ETU is a 3-terminal Positive Regulator with several fixed-output voltages, making it useful in a wide range of applications. This type employs internal current limiting, thermal shut-down and safe operating area. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as fixed-voltage regulator, this device can be used with external components for adjustable voltages and currents.
Short-circuit protection
±4% Output voltage tolerance

Show

KA7812ETU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Operating Voltage	14.5V ~ 27V
Number of Outputs	1 Output
Input Voltage (DC)	35.0V (max)
Output Voltage	12 V
Output Current	1 A
Number of Positions	3 Position
Quiescent Current	8 mA
voltage rating	2V @1A
Input Voltage (Max)	27 V
Input Voltage (Min)	14.5 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±4 %
Input Voltage	≤35 V
	Show
Size-Length	10 mm
Size-Width	4.5 mm
Size-Height	15.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
