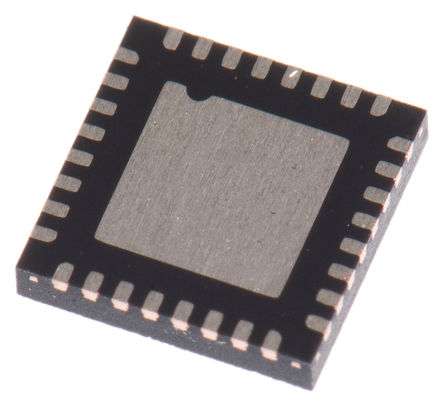

Image is for your reference only,please check specifications for details

KSZ8081MNXCA TR - Micrel
Manufacturer:
Micrel
ManyChip's Part#:
MC131287173
Category:
Interface IC, Interface Controller
Package:
QFN-32
Datasheet:
Datasheet 3D Model
Description:
MICREL SEMICONDUCTOR KSZ8081MNXCA TR Ethernet Controller, 100Mbps, IEEE 802.3, 3.135V, 3.465V, QFN, 32Pins
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.56

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KSZ8081MNXCA TR is a Physical Layer Transceiver with a single-supply 10Base-T/100Base-TX Ethernet for transmission and reception of data over standard CAT-5 unshielded twisted pair cable. It is a highly integrated, PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs, by integrating a low-noise regulator to supply the 1.2V core. It offers the media independent interface for direct connection with MII-compliant Ethernet MAC processors and switches. The transceiver provides diagnostic features to facilitate system bring-up and debugging in production testing and in product deployment. Parametric NAND tree support enables fault detection between I/Os and the board.
Back-to-back mode support for 100Mbps copper repeater
MCD/MDIO management interface for PHY register configuration
Programmable interrupt output
LED outputs for link, activity and speed status indication
On-chip termination resistors for the differential pairs
Power-down and power-saving modes

Show

KSZ8081MNXCA TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	QFN-32
Supply Voltage (DC)	3.13V (min)
Number of Positions	32 Position
Data Rate	100 Mbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	1.8V, 2.5V, 3.3V
Supply Voltage (Max)	3.465 V
Supply Voltage (Min)	3.135 V
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.8 mm
Operating Temperature	0℃ ~ 70℃
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
