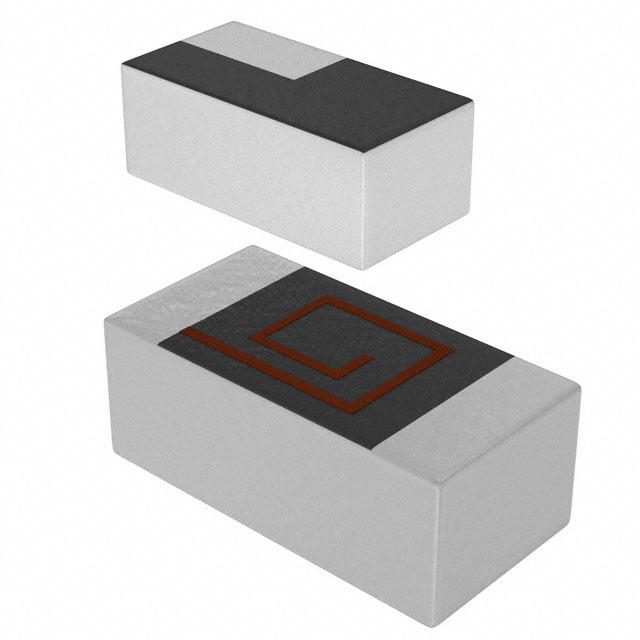

Image is for your reference only,please check specifications for details
- L0603150GGSTR - AVX
-
Manufacturer:AVX
-
ManyChip's Part#:MC62139369
-
Category:Inductor
-
Package:0603
-
Datasheet:Datasheet 3D Model
-
Description:Inductor RF Chip Thin Film Multilayer 15nH 2% 450MHz 28Q-Factor Ceramic 300mA 600mOhm DCR 0603 T/R
-
Stock Locations:
-
Availability:1,541 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.56
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 15nH Unshielded Thin Film Inductor 300mA 600mOhm Max 0603 (1608 Metric)
L0603150GGSTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Current Rating | 300 mA |
| Capacitance Tolerance | ±2 % |
| Inductance | 15 nH |
| Self Resonant Frequency | 2.5 GHz |
| Resistance | 600 mΩ |
| Resonant Frequency | 2.50 GHz |
| Shielding | No |
| Inductance Tolerance | ±2 % |
| Test Frequency | 450 MHz |
| DC Resistance (DCR) | ≤600 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Resistance (DC Max) | 600 mΩ |
| Show | |
| Size-Length | 1.7 mm |
| Size-Width | 0.81 mm |
| Size-Height | 0.71 mm |
| Size-Thickness | 610 µm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
