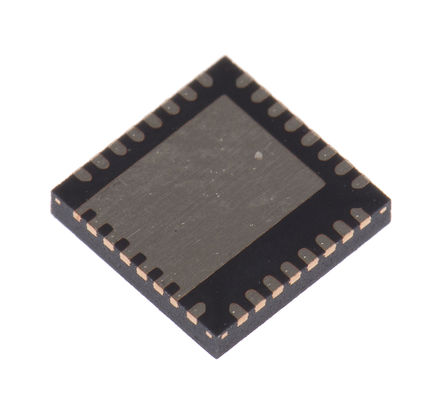

- L2293Q - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC61225268
-
Category:FET Driver
-
Package:VFQFN-32
-
Datasheet:Datasheet 3D Model
-
Description:MOSFET DRVR 1.2A 4Out H Brdg Non-Inv 32Pin VFQFPN EP Tube
-
Stock Locations:
-
Availability:271 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.67
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.
- To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included.
- This device is suitable for use in switching applications at frequencies up to 5 kHz.
- The L2293Q is assembled in a VFQFPN-32L 5x5 package which has exposed pad available for heatsinking.
- **Key Features**
- Internal clamp diodes
- 600 mA output current capability per channel
- Enable facility
- 1.2 A peak output current (non repetitive) per channel
- Logical \"0\" input voltage up to 1.5 V (high noise immunity)
- Overtemperature protection
L2293Q Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | VFQFN-32 |
| Number of Outputs | 4 Output |
| Output Current | 600 mA |
| Power Dissipation | 4000 mW |
| Output Current (Max) | 1.2 A |
| Fall Time (Max) | 250 ns |
| Fall Time (Max) | 250 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Power Dissipation (Max) | 4000 mW |
| Supply Voltage | 2.8V ~ 36V |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 2.8 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 5 mm |
| Operating Temperature | -20℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
