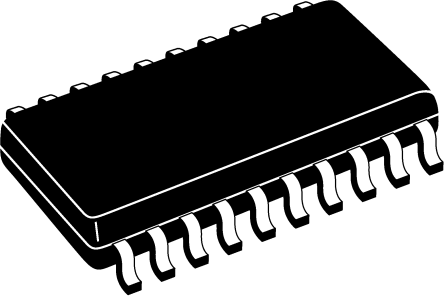

L4981BD - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC15365959
Category:
Power Management IC
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L4981BD PFC Controller IC, Power Factor 0.99, 19.5V & 12mA Supply, 18V Lockout, 80kHz, SOIC-20
Stock Locations:
Availability:
10,389 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.16

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L4981BD is a Power Factor Corrector provides the necessary features to achieve a very high power factor up to 0.99. Realized in BCD 60II technology this power factor corrector (PFC) pre-regulator contains all the control functions for designing a high efficiency-mode power supply with sinusoidal line current consumption. The L4981 can be easily used in systems with mains voltages between 85V to 265V without any line switch. This new PFC offers modulated frequency optimizing the size of the input filter; the operating frequency mode working with an average current-mode PWM controller, maintaining sinusoidal line current without slope compensation. Besides power MOSFET gate driver, precise voltage reference (externally available), error amplifier, under-voltage lockout, current sense and the soft start are included. To limit the number of the external components, the device integrates protections as overvoltage and overcurrent.
Limit line current distortion to <5%
Universal input mains
Feed forward line and load regulation
Average current mode PWM for minimum noise sensitivity
High current bipolar and DMOS totem pole output
Under voltage lockout with hysteresis and programmable turn on
Threshold overvoltage, overcurrent protection
Precise 2% on chip reference externally available
Soft-start

Show

L4981BD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Frequency	80 kHz
Supply Voltage (DC)	18.0V (min)
Number of Outputs	1 Output
Output Voltage	7.50 V
Output Current	1.50 A
Number of Positions	20 Position
Power Dissipation	600 mW
Switching Frequency	115 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	14.5V ~ 19.5V
Supply Voltage (Max)	19.5 V
Supply Voltage (Min)	18 V
	Show
Size-Length	13 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
