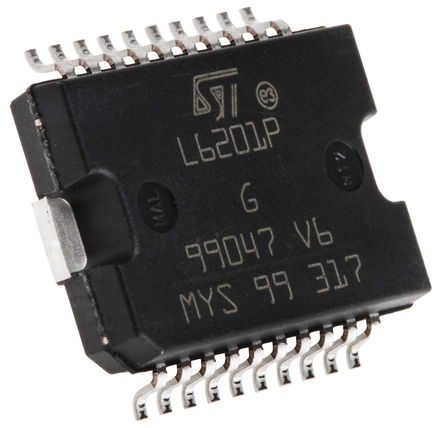

Image is for your reference only,please check specifications for details

L6201PS - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC328183
Category:
Motor Driver
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L6201PS Motor Driver/Controller, Full Bridge, 12V to 48V supply, 60V/5A/2Outputs, SOIC-20
Stock Locations:
Availability:
25 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.92

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6201PS is a Full-bridge Driver IC for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and bi-polar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and µC compatible. Each channel (half-bridge) of the device is controlled by a separate logic input, while a common enable controls both channels.
Cross conduction protection
TTL compatible drive
Thermal shutdown
Internal logic supply
High efficiency

Show

L6201PS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Supply Voltage (DC)	12.0V (min)
Number of Outputs	2 Output
Output Voltage	60 V
Output Current	5 A
Supply Current	15.0 mA
Number of Channels	2 Channel
Number of Positions	20 Position
Power Dissipation	2300 mW
Output Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2300 mW
Supply Voltage	12V ~ 48V
Supply Voltage (Max)	48 V
Supply Voltage (Min)	12 V
	Show
Size-Length	16 mm
Size-Width	11.1 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
