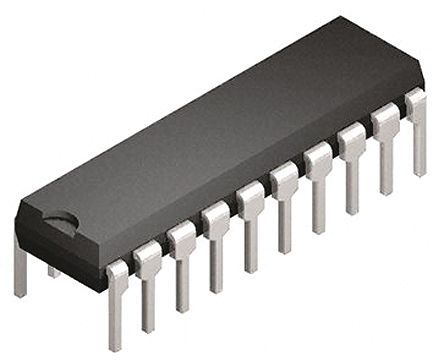

Image is for your reference only,please check specifications for details
- L6205N - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC8160196
-
Category:Motor Driver
-
Package:DIP-20
-
Datasheet:Datasheet 3D Model
-
Description:Motor Driver/Controller, Full Bridge, 8V to 52V supply, 52V/2.8A/4Outputs, DIP-20
-
Stock Locations:
-
Availability:9,500 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.34
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The L6205N is a DMOS dual Full-bridge Driver for motor control applications, realized in MultiPower-BCD technology, which combines isolated DMOS power transistors with CMOS and bi-polar circuits on the same chip. It features a non-dissipative protection of the high side PowerMOSFETs.
- Non dissipative over-current protection
- Paralleled operation
- Cross conduction protection
- Thermal shutdown
- Under-voltage lockout
- Integrated fast free wheeling diodes
L6205N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 20 Pin |
| Case/Package | DIP-20 |
| Supply Voltage (DC) | 8.00V (min) |
| Number of Outputs | 4 Output |
| Output Voltage | 52 V |
| Output Current | 2.8 A |
| Supply Current | 10.0 mA |
| Number of Channels | 2 Channel |
| Number of Positions | 20 Position |
| Quiescent Current | 10 mA |
| Rise Time | 250 ns |
| Switching Frequency | 100 kHz |
| Fall Time | 250 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 52V |
| Supply Voltage (Max) | 52 V |
| Supply Voltage (Min) | 8 V |
| Show | |
| Size-Length | 24.8 mm |
| Size-Width | 7.1 mm |
| Size-Height | 5.1 mm |
| Operating Temperature | -25℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
| HK STC License | NLR |
