Description
- The L6205 is a DMOS Dual Full Bridge designed for motor control applications, realized in MultiPower-BCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. Available in PowerDIP20 (16+2+2), PowerSO20 and SO20(16+2+2) packages, the L6205 features a non-dissipative protection of the high side PowerMOSFETs and thermal shutdown.
- **Key Features**
- INTEGRATED FAST FREE WHEELING DIODES
- UNDER VOLTAGE LOCKOUT
- CROSS CONDUCTION PROTECTION
- PARALLELED OPERATION
- OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
- RDS(ON) 0.3 TYP. VALUE @ Tj = 25 °C
- 5.6A OUTPUT PEAK CURRENT (2.8A DC)
- NON DISSIPATIVE OVERCURRENT PROTECTION
- THERMAL SHUTDOWN
- OPERATING FREQUENCY UP TO 100KHz

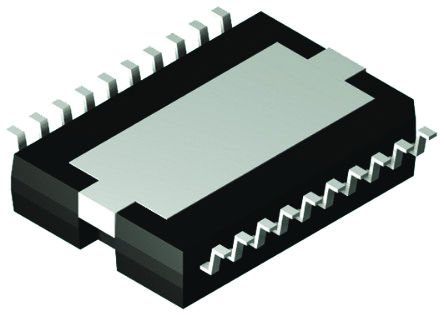

L6205PD013TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | PowerSO-20 |
| Supply Voltage (DC) | 52.0V (max) |
| Number of Outputs | 4 Output |
| Output Current | 2.8 A |
| Supply Current | 10.0 mA |
| Number of Channels | 2 Channel |
| Quiescent Current | 10 mA |
| Rise Time | 250 ns |
| Switching Frequency | 100 kHz |
| Fall Time | 250 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 52V |
| Show | |
| Size-Length | 16 mm |
| Size-Width | 11.1 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | -25℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
