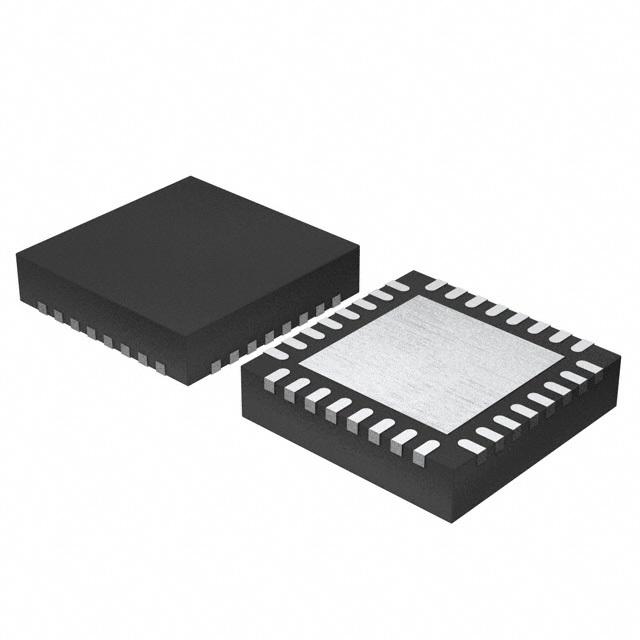

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The L6230 is a DMOS fully integrated three phase motor driver with overcurrent protection, optimized for FOC application thanks to the independent current senses.
- Features
- ■ Operating supply voltage from 8 to 52 V
- ■ 2.8 A output peak current (1.4 A RMS)
- ■ RDS(on)0.73 Ωtyp. value @ TJ= 25 °C
- ■ Integrated fast free wheeling diodes
- ■ Operating frequency up to 100 kHz
- ■ Non dissipative overcurrent detection and protection
- ■ Cross conduction protection
- ■ Diagnostic output
- ■ Uncommitted comparator
- ■ Thermal shutdown
- ■ Under voltage lockout
- Application
- ■ BLDC motor driving
- ■ Sinusoidal / 6-steps driving
- ■ Field oriented control driving system
L6230QTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | VFQFPN-32 |
| Number of Outputs | 1 Output |
| Output Voltage | 52 V |
| Output Current | 1.4 A |
| Supply Current | 1.4 A |
| Number of Positions | 32 Position |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 8V ~ 52V |
| Supply Voltage (Max) | 52 V |
| Supply Voltage (Min) | 8 V |
| Show | |
| Operating Temperature | -25℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
