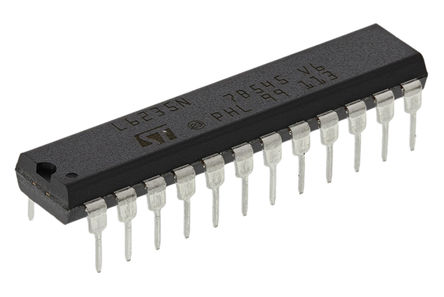

L6235N - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC5921482
Category:
Motor Driver
Package:
PDIP-24
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L6235N DMOS Driver for Three-Phase Brushless DC Motor, 8V to 52V supply, 52V/7.1A/3Outputs, DIP-24
Stock Locations:
Availability:
4,993 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.71

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6235N is a 3-phase DMOS fully integrated Motor Driver with over-current protection. Realized in BCD technology, the device combines isolated DMOS power transistors with CMOS and bi-polar circuits on the same chip. The device includes all the circuitry needed to drive a 3-phase BLDC motor including a 3-phase DMOS bridge, a constant off time PWM current controller and the decoding logic for single ended hall sensors that generates the required sequence for the power stage.
Non-dissipative over-current detection and protection
Diagnostic output
Constant tOFF PWM current controller
Slow decay synchronization rectification
Brake function
Tachometer output for speed loop
Cross conduction protection
Thermal shutdown
Under-voltage lockout
Integrated fast freewheeling diodes

Show

L6235N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	24 Pin
Case/Package	PDIP-24
Supply Voltage (DC)	8.00V (min)
Number of Outputs	3 Output
Output Voltage	52 V
Output Current	2.8 A
Number of Channels	3 Channel
Number of Positions	24 Position
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	12V ~ 52V
Supply Voltage (Max)	52 V
Supply Voltage (Min)	8 V
	Show
Size-Length	31.75 mm
Size-Width	6.6 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
