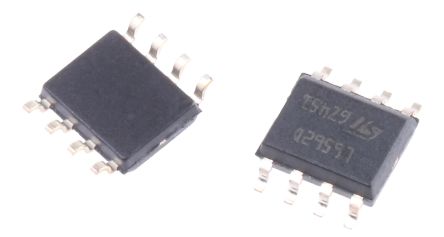

Image is for your reference only,please check specifications for details

L6562D - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC854970
Category:
Power Management IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L6562D PFC Controller IC, 10.3V to 22V & 3.5mA Supply, 10.3V Lockout, 30µA Start-Up, 70kHz, SOIC-8
Stock Locations:
Availability:
303 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.62

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6562D is a current-mode PFC Controller operating in transition mode (TM). Pin-to-pin compatible with the predecessor L6561 and it offers improved performance. The proprietary multiplexer design for minimum THD of AC input current and very precise adjustable output overvoltage protection. The highly linear multiplier includes a special circuit, able to reduce AC input current distortion, that allows wide range-mains operation with an extremely low THD, even over a large load range.
Realized in BCD technology
Transition-mode control of PFC pre-regulators
Extended IC supply voltage range
On-chip filter on current sense
Disable function

Show

L6562D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	70 kHz
Supply Voltage (DC)	22.0V (max)
Operating Voltage	10.3V ~ 22V
Power Rating	650 mW
Output Current	800 mA
Number of Positions	8 Position
Input Current	2.50 mA
Power Dissipation	650 mW
Switching Frequency	1 MHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	10.3V ~ 22V
Supply Voltage (Max)	22 V
Supply Voltage (Min)	10.3 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.25 mm
Operating Temperature	-25℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
