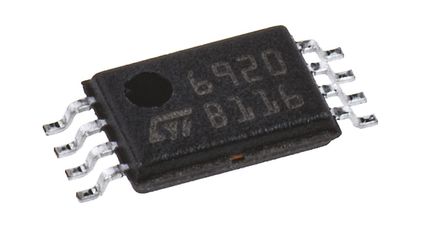

Image is for your reference only,please check specifications for details

L6920D - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC4555329
Category:
DC to DC Converter
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 0.6V to 5.5V Step Up Dual-Out 2V to 5.2V/3.3V/5V 8Pin TSSOP Tube
Stock Locations:
Availability:
100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.38

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6920D is a 1V high efficiency synchronous Step-up Converter requiring only three external components to realize the conversion from the battery voltage to the selected output voltage. Internal synchronous rectifier is implemented with a 120mR P-channel MOSFET and in order to improve the efficiency, a variable frequency control is implemented.
Internal synchronous rectifier
Zero shut down current
120m Internal active switch
Low battery voltage detection
Reverse battery protection

Show

L6920D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Number of Outputs	1 Output
Output Voltage	2V ~ 5.2V
Output Current	1.2 A
Number of Positions	8 Position
Quiescent Current	18 µA
Input Voltage (Max)	5.5 V
Input Voltage (Min)	0.6 V
Output Voltage (Max)	5.2 V
Output Voltage (Min)	2 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	0.6 V
Input Voltage	5.5 V
	Show
Size-Length	3 mm
Size-Width	4.4 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
