Description

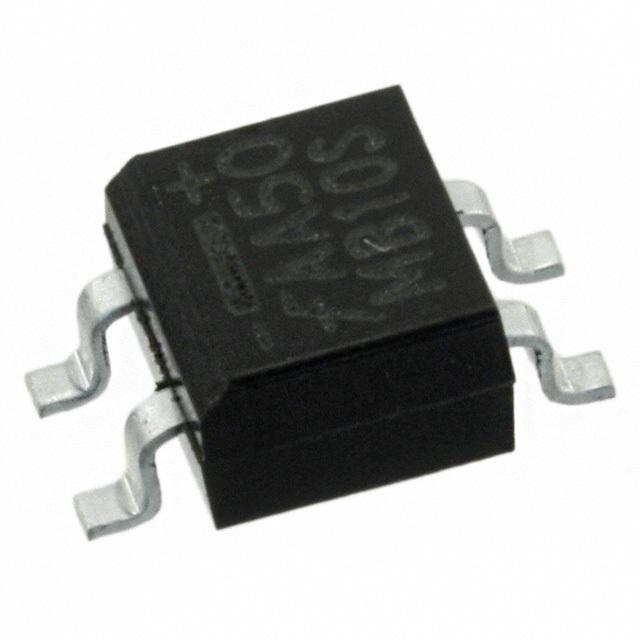

The MB10S is a Bridge Rectifier for printed circuit board. The MB family of bridge rectifier is a 0.5A rectifier family that achieves high surge current absorption within a very small foot print. Within its small 35mm² form factor, the MB family shines in its surge capability. In order to absorb high surge currents, the design supports a 35A IFSM rating and a 5.0A²Sec I²T rating. Devices in the family are also rated to breakdown voltages of up to 1000V. This features make the MB family ideal for small power supplies that need a little extra surge capability.

Show

MB10S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOIC-4
Number of Positions	4 Position
Forward Voltage	1 V
Power Dissipation	1400 mW
Forward Current	800 mA
Max Forward Surge Current (Ifsm)	35 A
Maximum Forward Voltage (Max)	1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1400 mW
	Show
Size-Length	4.95 mm
Size-Width	4.2 mm
Size-Height	2.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99
