Description
- DESCRIPTION
- The TLV702xx series of low-dropout (LDO) linear regulators are low quiescent current devices with
- excellent line and load transient performance. These LDOs are designed for power-sensitive applications. A precision bandgap and error amplifier provides overall 2% accuracy. Low output noise, very high power-supply rejection ratio (PSRR), and low-dropout voltage make this series of devices ideal for a wide selection of battery-operated handheld equipment. All device versions have thermal shutdown and current limit for safety.
- FEATURES
- • Very Low Dropout:
- – 37 mV at IOUT = 50 mA, VOUT = 2.8 V
- – 75 mV at IOUT = 100 mA, VOUT = 2.8 V
- – 220mV at IOUT = 300 mA, VOUT = 2.8 V
- • 2% Accuracy
- • Low IQ : 35 μA
- • Fixed-Output Voltage Combinations Possible from 1.2 V to 4.8 V
- • High PSRR: 68 dB at 1 kHz
- • Stable with Effective Capacitance of 0.1 μF(1)
- • Thermal Shutdown and Overcurrent Protection
- • Packages: SOT23-5 and 1,5mm × 1,5mm SON-6
- (1) See the Input and Output Capacitor Requirements in the Application Information section.
- APPLICATIONS
- • Wireless Handsets
- • Smart Phones, PDAs
- • MP3 Players
- • ZigBee® Networks
- • Bluetooth® Devices
- • Li-Ion Operated Handheld Products
- • WLAN and Other PC Add-on Cards

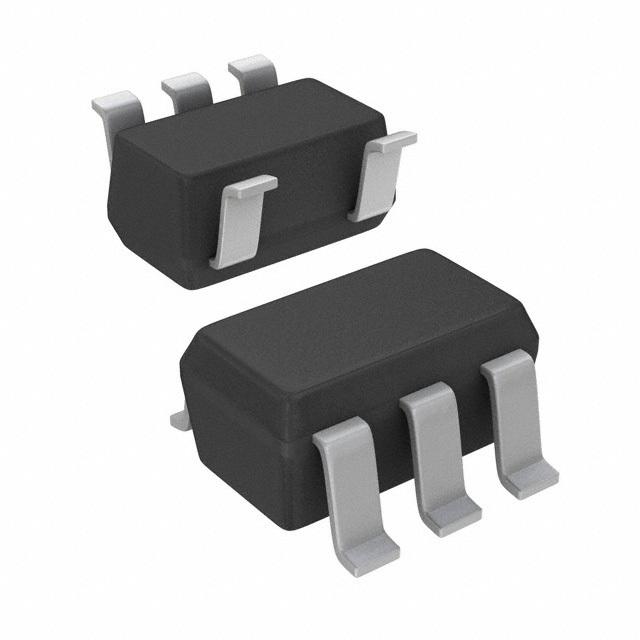

TLV70237DBVR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.7 V |
| Output Current | 300 mA |
| Supply Current | 55µA ~ 370µA |
| Power Dissipation | 500 W |
| Quiescent Current | 30.0 µA |
| Output Capacitor Type | Ceramic |
| voltage rating | 220 mV |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2 V |
| Output Voltage (Min) | 3.7 V |
| Output Current (Max) | 0.3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±0.5 % |
| Input Voltage | ≤5.5 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
