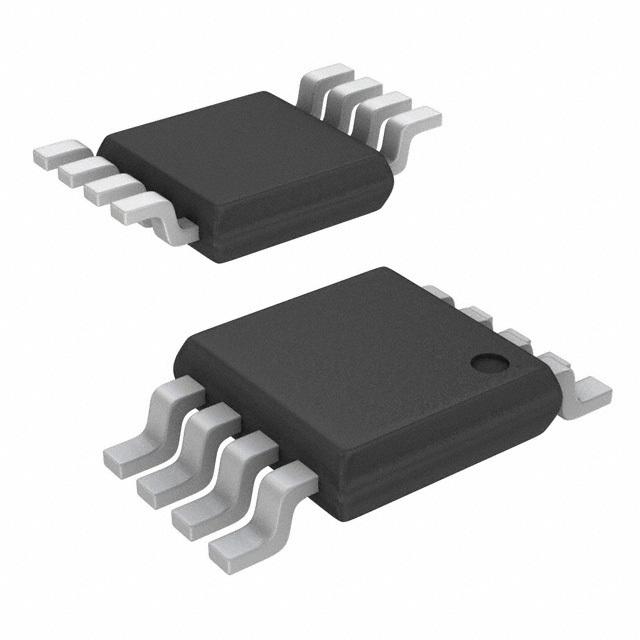

Image is for your reference only,please check specifications for details
- L6920DBTR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC22480163
-
Category:DC to DC Converter
-
Package:MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Преобразователь DC-DC 0.8В до 5.5В, повышающий, один выход 1.8В до 5.2В/3.3В/5В, 8 выводов MSOP, лента/катушка
-
Stock Locations:
-
Availability:3,965 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.56
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Регулируйте уровень напряжения ваших устройств с помощью повышающего преобразователя постоянного тока L6920DBTR от STMicroelectronics. Этот преобразователь имеет один выход. Для эффективного питания вашей схемы ему требуется напряжение не менее 0,8 В и не более 5,5 В. Благодаря регулируемому/фиксированному выходу с напряжением 1,8–5,2|3,3|5 В это лучшее решение для управления питанием. Частота переключения составляет 1000 кГц. Упаковка в виде ленты и катушки обеспечит сохранность изделия при транспортировке, а также быстрый монтаж компонентов. Максимальная рабочая температура данного преобразователя составляет 150 °C.
L6920DBTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Supply Voltage (DC) | 5.50V (max) |
| Number of Outputs | 1 Output |
| Output Voltage | 1.8V ~ 5.2V |
| Output Current | 900 mA |
| Number of Positions | 8 Position |
| Quiescent Current | 15 µA |
| Switching Frequency | 1000 kHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 0.8 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 1.8 V |
| Operating Temperature (Max) | 150 ℃ |
| Supply Voltage | 0.8 V |
| Input Voltage | 0.6V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
