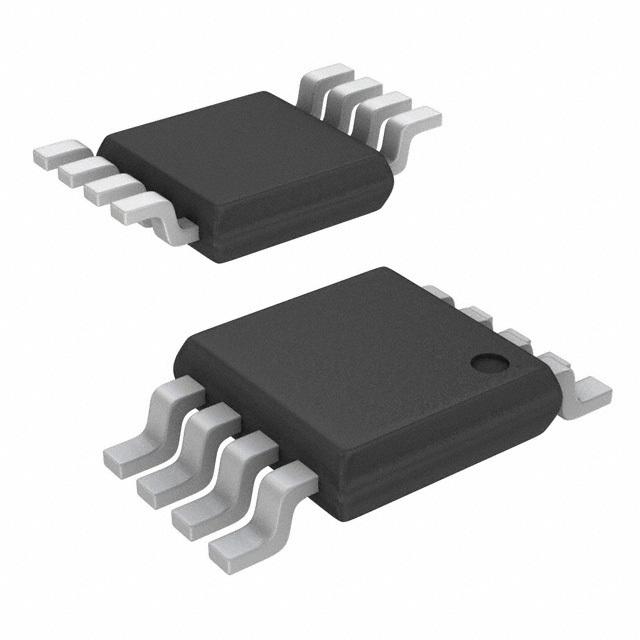

Image is for your reference only,please check specifications for details

L6925D - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC116106667
Category:
DC to DC Converter
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 0.6V to 5.5V 0.8A 8Pin MSOP Tube
Stock Locations:
Availability:
1,000 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The device is dc-dc monolithic regulator specifically designed to provide extremely high efficiency. The device has on UVLO set at 2.7V cause it is part icurarly thought for single Li-ion cell applications.
Output voltage can be selected by an external divider down to 0.6V. Duty Cycle can saturate to 100% allowing low drop-out operation.
FEATURES
■ 2.7V TO 5.5V BATTERY INPUT RANGE
■ HIGH EFFICIENCY: UP TO 95%
■ INTERNAL SYNCHRONOUS SWITCH
■ NO EXTERNAL SCHOTTKY REQUIRED
■ EXTREMELY LOW QUIESCENT CURRENT
■ 800mA MAX OUTPUT CURRENT
■ ADJUSTABLE OUTPUT VOLTAGE FROM 0.6V
■ LOW DROP-OUT OPERATION: UP TO 100% DUTY CYCLE
■ SELECTABLE LOW NOISE/LOW CONSUMPTION MODE AT LIGHT LOAD
■ LOW BATTERY INPUT
■ LOW BATTERY OUTPUT
■ ±1% OUTPUT VOLTAGE ACCURACY
■ CURRENT-MODE CONTROL
■ 600kHz SWITCHING FREQUENCY
■ EXTERNALLY SYNCHRONIZABLE FROM 500kHz TO 1.4MHz
■ OVP
■ SHORT CIRCUIT PROTECTION

Show

L6925D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Number of Outputs	1 Output
Output Voltage	0.6V ~ 5.5V
Output Current	800 mA
Switching Frequency	600 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	0.6 V
Output Current (Max)	0.8 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7 V
Input Voltage	2.7V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
