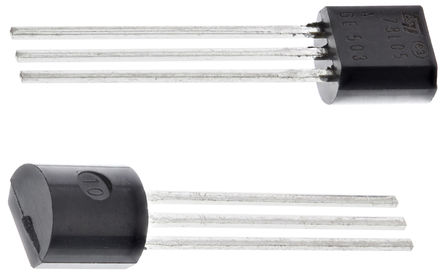

L78L05ABZ - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC4801200
Category:
Voltage Regulator
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L78L05ABZ Linear Voltage Regulator, 7805, Fixed, LDO, 10V To 30V In, 5V And 0.1A Out, TO-92-3
Stock Locations:
Availability:
1,408 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L78L05ABZ is a three-terminal positive Voltage Regulator employ internal current limiting and thermal shutdown, making them essentially indestructible. They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Short-circuit protection
No external components are required
Available in either ±4% (A) or ±8% (C) selection

Show

L78L05ABZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Supply Voltage (DC)	30.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	30.0V (max)
Output Voltage	5 V
Output Current	100 mA
Supply Current	5.5mA ~ 6mA
Number of Positions	3 Position
Quiescent Current	6 mA
voltage rating	1.7V @40mA
Input Voltage (Max)	30 V
Input Voltage (Min)	10 V
Output Voltage (Min)	5 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	30 V
	Show
Size-Length	4.95 mm
Size-Width	3.94 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
