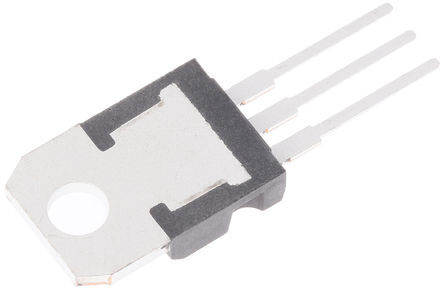

Image is for your reference only,please check specifications for details

L7905ACV - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC9071830
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L7905ACV Fixed LDO Voltage Regulator, -35V to -10V, 1.4V Dropout, -5Vout, 1.5Aout, TO-220-3
Stock Locations:
Availability:
14,571 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L7905ACV is a three-terminal negative Voltage Regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78 positive standard series, they are particularly suited for split power supplies. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Thermal overload protection
Short-circuit protection
Output transition SOA protection
Output tolerance 2% at 25°C

Show

L7905ACV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Supply Voltage (DC)	-35.0 V (max)
Number of Outputs	1 Output
Input Voltage (DC)	-20.0 V (max)
Output Voltage	5 V
Output Current	1.5 A
Supply Current	3 mA
Number of Positions	3 Position
Quiescent Current	3 mA
voltage rating	1.4 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±2 %
Input Voltage	35 V
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
