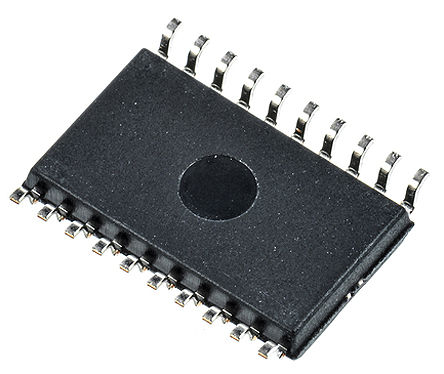

Image is for your reference only,please check specifications for details
- L9997ND013TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC23923037
-
Category:Motor Driver
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:MOSFET DRVR 2.2A 2Out Half Brdg Non-Inv 20Pin SO T/R
-
Stock Locations:
-
Availability:1,776 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.76
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The L9997ND is a monolithic integrated driver, in BCD technology intended to drive various loads, including DC motors. The circuit is optimized for automotive electronics enviromental conditions.
- ■ HALF BRIDGE OUTPUTS WITH TYPICAL RON = 0.7Ω
- ■ OUTPUT CURRENT CAPABILITY±1.2A
- ■ OPERATING SUPPLY VOLTAGE RANGE 7V TO 16.5V
- ■ SUPPLY OVERVOLTAGE PROTECTION FUNCTION FOR VVS UP TO 40V
- ■ VERY LOW QUIESCENT CURRENT IN STANDBY MODE < 1µA
- ■ CMOS COMPATIBLE INPUTS WITH HYS TERESIS
- ■ OUTPUT SHORT-CIRCUIT PROTECTION
- ■ THERMAL SHUTDOWN
- ■ REAL TIME DIAGNOSTIC: THERMAL OVER LOAD, OVERVOLTAGE
L9997ND013TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Supply Voltage (DC) | 16.5V (max) |
| Number of Outputs | 2 Output |
| Output Current | 1.2 A |
| Supply Current | 6.00 mA |
| Number of Channels | 2 Channel |
| Number of Positions | 20 Position |
| Rise Time | 150000 ns |
| Output Current (Max) | 2.2 A |
| Fall Time | 150000 ns |
| Fall Time (Max) | 150000 ns |
| Fall Time (Max) | 150000 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 7V ~ 16.5V |
| Supply Voltage (Max) | 16.5 V |
| Supply Voltage (Min) | 7 V |
| Input Voltage | 7 V |
| Show | |
| Size-Length | 13 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
