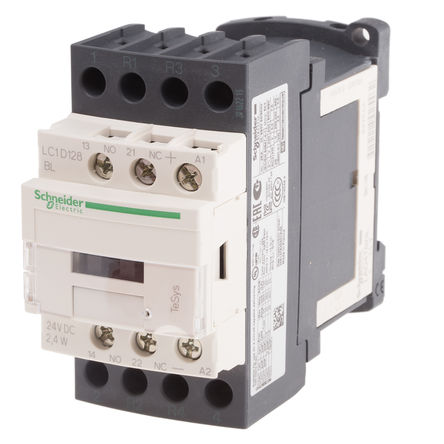

Image is for your reference only,please check specifications for details

LC1D128BL - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC177271233
Category:
Industrial Relay
Datasheet:
Datasheet 3D Model
Description:
Contactor, Non-Reversing, 24VDC Coil, 25A, 4Pole, DIN Rail, TeSys D
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 161.24

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**TeSys D Series – Contactors & Reversing Contactors up to 150A for inductive motor and 250A for resistive loads:**
Reliable and long-lasting, TeSys D is the ultimate choice for demanding or wide power range applications.*TeSys D contactor** offers you quick simple setup, while maintaining a compact size of 45 (9 to 38A) and 55 mm (40 to 65 A) as well as compliance with international standards. From 40 to 65 A versions are equipped with EverLink, this patented terminal technology, ENSURES a permanent tightening quality even in the event of conductor creep.
**Features:**
* The TeSys D contactors is the largest selling line of contactors in the world. They offer multi-standard compact solution, high reliability with long mechanical and electrical life and the most complete line of accessories in the industry. TeSys D contactors is the perfect choice for any applications.
* TeSys D contactors leverage on 100 years of experience and innovation to control your motors.
* New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil.
* TeSys D Green contactor simplify your maintenance services with 90% less references needed.
* TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
**Safety:**
* Safe and long-lasting power connection with Everlink and spring terminals
* Suitable for safety applications thanks to mechanically linked and mirror contacts (compliant with IEC 60947-4-1 and 60947-5-1 )
* Identification of safety chain with red cover and aux contact
**Efficiency:**
* Recognized high performances and quality solutions
* Outstanding breaking/making capacity up to 20In
* Multi-standard : IEC, UL, CCC, EAC, Marine, etc.
**Continuity of Service:**
* Certified type 1 and 2 coordination tables
* Worldwide availability of products and after sales services
**PLC Direct Connection:**
* TeSys D is the only contactor range with full compatibility with PLC input/output from 9A to 65A.
* TeSys D low consumption DC coil (BL references) uses only 100mA inrush and sealed from 9 to 38A –
* New TeSys D Green (BBE coil references) is compatible with digital I/O

Show

LC1D128BL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Contact Current Rating	25 A
Coil Voltage	24 VDC
	Show
Size-Length	85 mm
Size-Width	45 mm
RoHS	RoHS Compliant
