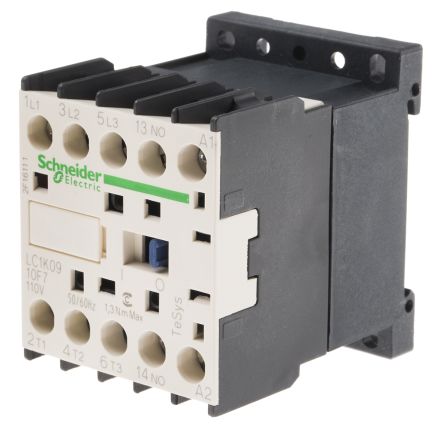

Image is for your reference only,please check specifications for details

LC1K0910F7 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC107669706
Category:
Industrial Relay
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC LC1K0910F7 Contactor, 600VAC, 3Pole, 3PST-NO, DIN Rail, 20A, 110V
Stock Locations:
Availability:
5 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 52.39

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LC1K0910F7 is a DIN-Rail Mini Contactor with screw clamp termination and without built-in bidirectional peak limiting diode suppressor coil technology. This contactor suitable for utilisation category AC-1 and AC-3 9A motor control resistive load.
Plate, rail mounting support
12 to 18AWG Power wire size
5 to 15ms Operating time
10000000 cycles Mechanical durability
-25 to 50°C Ambient air temperature range for operation
UL94V-1 Flammability rating

Show

LC1K0910F7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Operating Voltage	110 VAC
Current Rating	9 A
Power Rating	4 kW
Contacts Type	3PST-NO
Contact Current Rating	9 A
Coil Voltage	110 VAC
Coil Voltage (AC)	110 V
Switching Current (Max)	110 A
Operating Temperature (Max)	50 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	690 VAC
	Show
Size-Length	58 mm
Size-Width	45 mm
Operating Temperature	-25℃ ~ 50℃
RoHS	Non-Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
