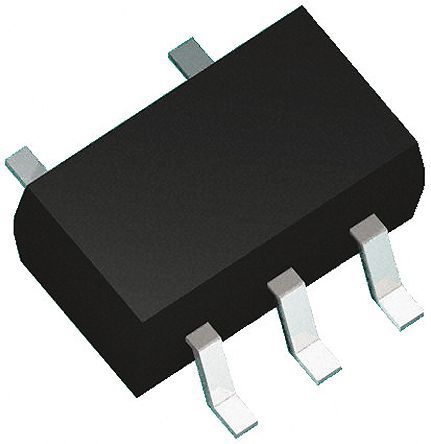

Image is for your reference only,please check specifications for details
- LD59015C33R - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC8604727
-
Category:Voltage Regulator
-
Package:SOT-323-5
-
Datasheet:Datasheet 3D Model
-
Description:Fixed LDO Voltage Regulator, 2.3V to 5.5V, 150mV Dropout, 3.3Vout, 150mAout, SOT-323-5
-
Stock Locations:
-
Availability:1,073 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.49
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LD59015C33R is a 3.3V fixed output low-dropout (LDO) Linear Regulator with an input voltage range from 2.4 to 5.5V and a typical dropout voltage of 150mV. It is stable with ceramic capacitors. High PSRR, low quiescent current and low noise features make it suitable for low power battery-powered applications. Power supply rejection is 80dB at low frequency and starts to roll off at 10kHz. The enable logic control function puts the device in shutdown mode, allowing a total current consumption lower than 1µA.
- ±1.8% at 25°C Output voltage tolerance
- Internal current and thermal limit
LD59015C33R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-323-5 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 150 mA |
| Supply Current | 60µA ~ 110µA |
| Number of Positions | 5 Position |
| Quiescent Current | 110 µA |
| voltage rating | 150 mV |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.4 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 0.15 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1.8 % |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 2.2 mm |
| Size-Width | 1.35 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
| HK STC License | NLR |
