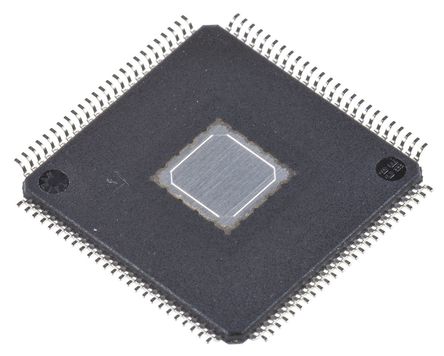

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TFP401APZP is a TI PanelBus™ DVI Receiver, HSYNC fix. The TI PanelBus™ flat-panel display product, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions. Targeted primarily at desktop LCD monitors and digital projectors, the TFP401APZP finds applications in any design requiring high-speed digital interface. The TFP401APZP supports display resolutions up to 1080p and WUXGA in 24-bit true-colour pixel format. The TFP401APZP offers design flexibility to drive one or two pixels per clock, supports TFT or DSTN panels and provides an option for time-staggered pixel outputs for reduced ground bounce. PowerPAD advanced packaging technology results in best-of-class power dissipation, footprint and ultralow ground inductance. The TFP401APZP combines PanelBus circuit innovation with TI"s advanced 0.18µm EPIC-5 CMOS process technology, along with TI PowerPAD package technology to achieve a reliable, low-powered, low-noise, high-speed digital interface solution.
- Supports pixel rates up to 165MHz (including 1080p and WUXGA at 60Hz)
- Digital visual interface (DVI) specification compliant
- True-colour, 24-bit/pixel, 16.7M colours at 1 or 2 pixels per clock
- Laser trimmed internal termination resistors for optimum fixed impedance matching
- Skew tolerant up to one pixel-clock cycle
- 4x Oversampling
- Reduced power consumption - 1.8V core operation with 3.3V I/Os and supplies
- Reduced ground bounce using time-staggered pixel outputs
- Incorporates HSYNC jitter immunity
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TFP401APZP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | TQFP-100 |
| Frequency | 25.0 MHz |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Output Current | 370 mA |
| Supply Current | 370 mA |
| Number of Channels | 3 Channel |
| Number of Positions | 100 Position |
| Data Rate | 495 Mbps |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 14 mm |
| Size-Height | 1 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
