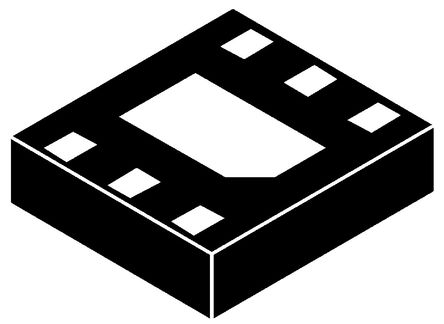

Image is for your reference only,please check specifications for details

LDFPVR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC21161503
Category:
Voltage Regulator
Package:
DFN-6
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LDFPVR LDO Voltage Regulator, Adjustable, 2.6V to 16V in, 200mV drop, 800mV to 12V/1A out, DFN-6
Stock Locations:
Availability:
2,931 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.71

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Never worry about components not turning off and on due to lack of voltage with this LDO LDFPVR linear regulator from STMicroelectronics. Its typical dropout voltage at current is 0.2@1A V. It has an overall accuracy of ±1 %. This voltage regulation device"s single output can produce a current up to 1 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.6 V that does not exceed 16 V. With an adjustable output that has a voltage of 0.8 to 12 V, this is power management at its best. A load regulation of 0.2%/A(Typ) and line regulation of 0.01%/V(Typ) is necessary for providing a constant voltage level at your output. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.5@1A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

Show

LDFPVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	DFN-6
Number of Outputs	1 Output
Output Voltage	0.8V ~ 12V
Output Current	1 A
Number of Positions	6 Position
Quiescent Current	800 µA
voltage rating	200 mV
Input Voltage (Max)	16 V
Input Voltage (Min)	2.6 V
Output Voltage (Max)	12 V
Output Voltage (Min)	800 mV
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	2.6V ~ 16V
	Show
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
