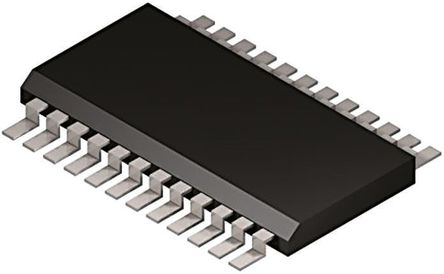

Image is for your reference only,please check specifications for details

LED1642GWXTTR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC9823872
Category:
LED Driver, LED Display Driver
Package:
TSSOP-24
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LED1642GWXTTR Led Driver, 16Outputs, Constant Current, 3V-5.5V in, 30MHz switch, 19V/40mA out, HTSSOP-24
Stock Locations:
Availability:
208 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.68

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LED1642GWXTTR is a 16-channel LED Driver with error detection, current gain control and 12/16-bit PWM brightness control. The monolithic low voltage/low current power 16-bit shift register designed for LED panel displays. The LED1642GW guarantees 20V output driving capability allowing the user to connect several LEDs in series. In the output stage, sixteen regulated current sources provide from 3 to 40mA constant current to drive the LEDs. The current is programmed through an external resistor and can be adjusted by a 7-bit current gain register in two sub ranges. The brightness can be adjusted separately for each channel through 12/16-bit grayscale control. Programmable turn-ON and turn-OFF time (four different values available) improves the low noise generation performance of the system. Open/short error detection mode. The auto power-shutdown and auto power-ON features (selectable) allow the device to save power without external intervention.
16 Constant current output channels
Current programmable through external resistor
7-bit Global current gain adjustment in two ranges
Programmable output turn-ON/OFF time
Error detection mode (both open and shorted-LED)
Programmable shorted-LED detection thresholds
Auto power-saving/auto-wakeup
Thermal management includes an over-temperature data alert and output thermal shutdown (170°C)

Show

LED1642GWXTTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	TSSOP-24
Frequency	30 MHz
Number of Outputs	16 Output
Input Voltage (DC)	3.3 V
Output Voltage	19 V
Output Current	40 mA
Supply Current	10 mA
Number of Channels	16 Channel
Number of Positions	24 Position
Switching Frequency	30 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	3 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	3 v
Output Current (Max)	40 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5.5V
Input Voltage	3.3 V
	Show
Size-Length	7.9 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
