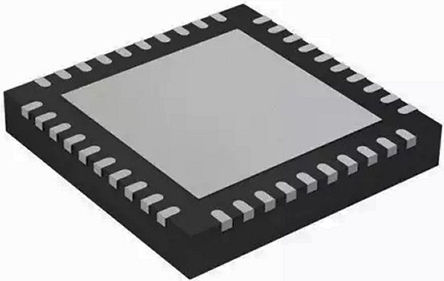

LED2472GQTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	MLPQ-40
Frequency	30 MHz
Number of Outputs	24 Output
Input Voltage (DC)	3.3 V
Output Voltage	19 V
Output Current	72 mA
Supply Current	15 mA
Number of Channels	24 Channel
Number of Positions	40 Position
Switching Frequency	30 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	3 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	3 v
Output Voltage (Max)	19 V
Output Current (Max)	0.072 A
Output Current (Min)	0.004 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5.5V
Input Voltage	5.5 V
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
